VISION INSPECTION
vision inspection
Small-Screen Optical Inspection Equipment (MS-3000)integrates RegemMarr's core AI algorithm technology with multiple high-resolution cameras and optical systems. It enables fully automated inspection of product assembly processes, supporting on-the-move detection to help enterprises reduce costs and improve efficiency. Applications: Intelligent inspection of small-sized screens such as LCD and LED.
| Product | Inspection Items | ||
|---|---|---|---|

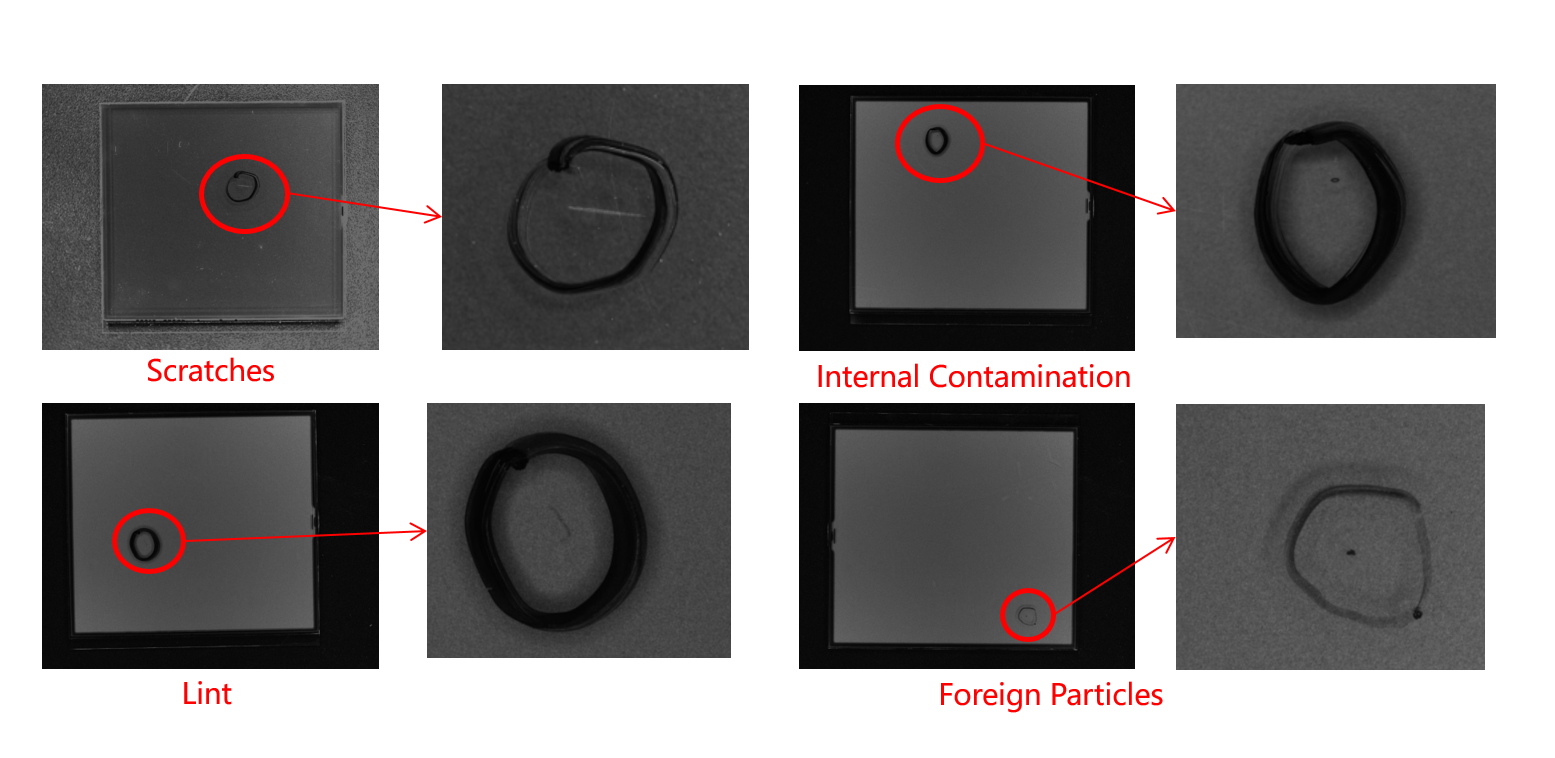

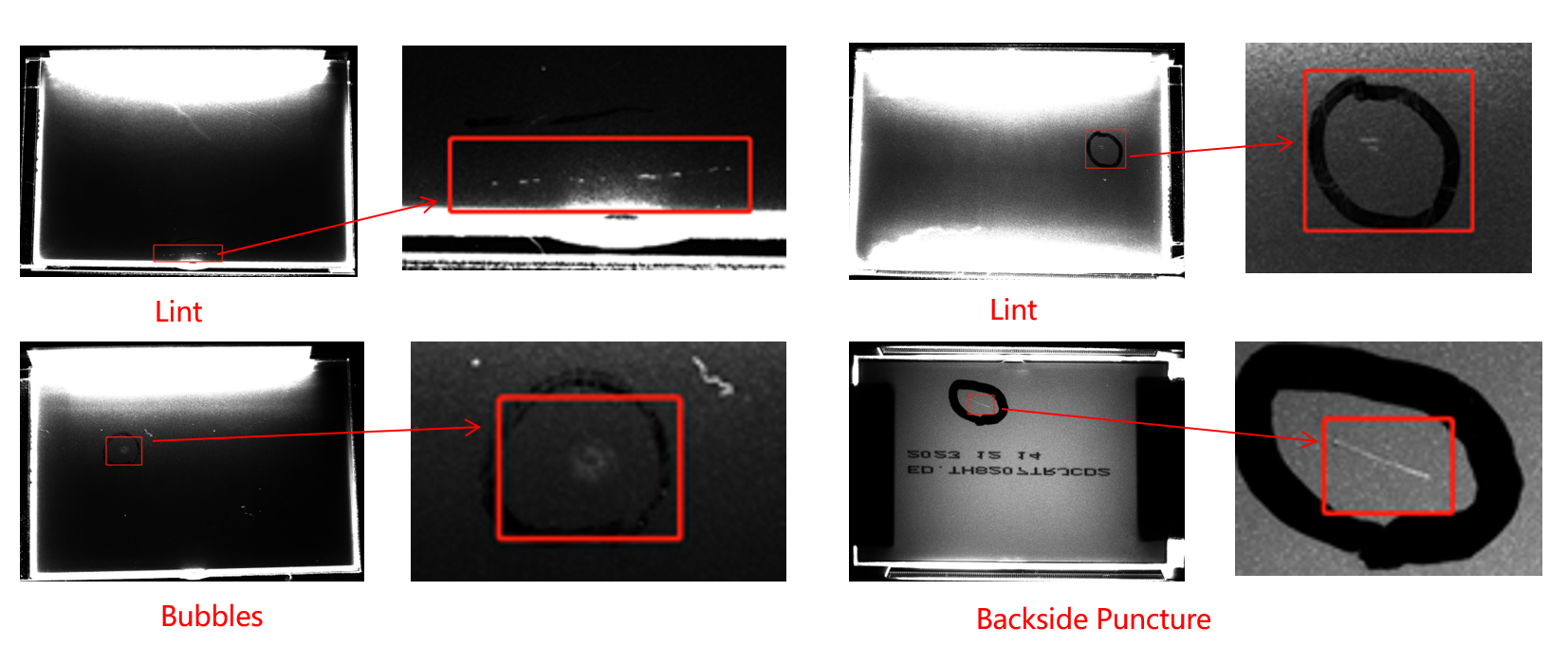

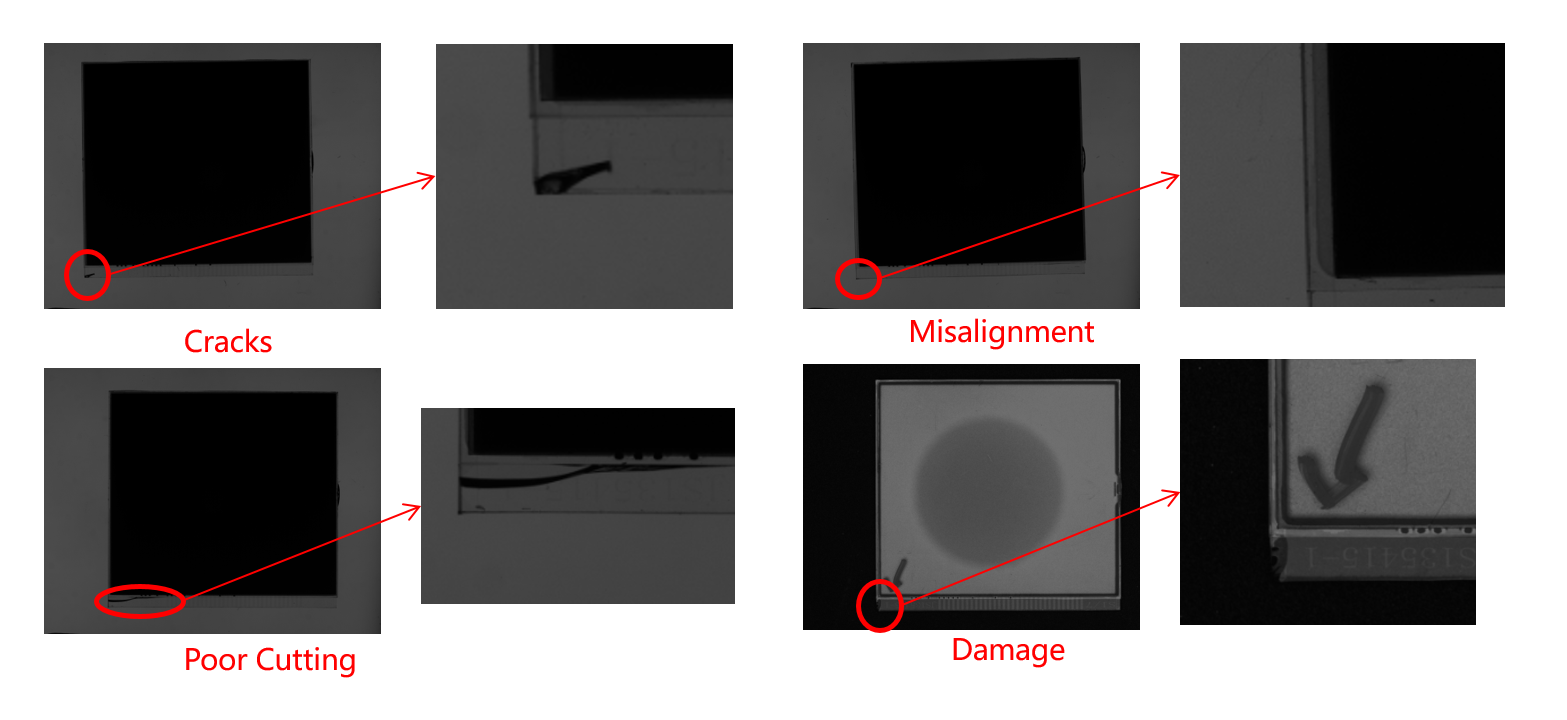

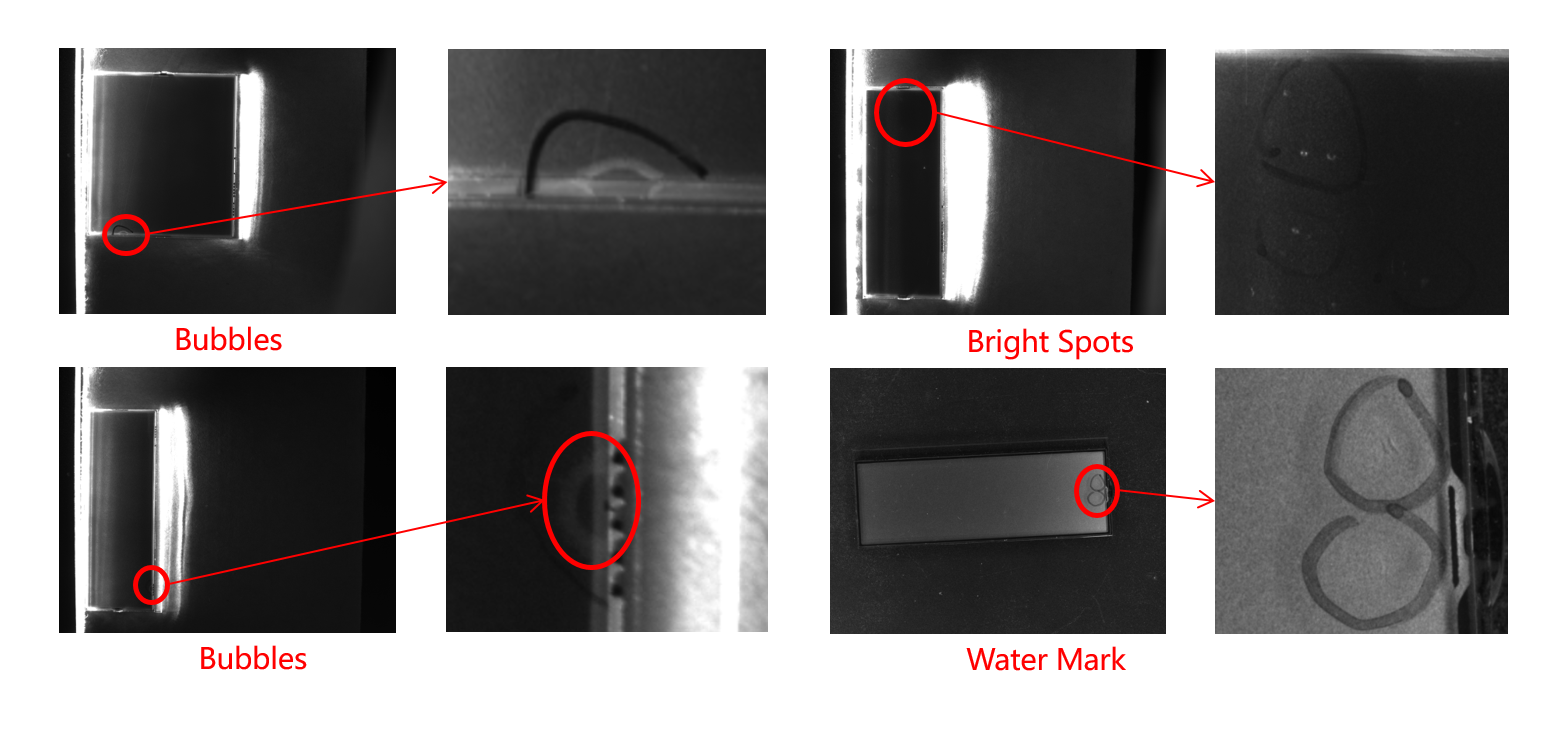

| Defect Detection | Defects including scratches, fibers/lint, internal contamination, bubbles, foreign particles, cracks, poor cutting, misalignment, white spots, water marks, breakage, etc. | ||
| Inspection Metrics | Over-Inspection Rate ≤10%, Missed Inspection Rate ≤0.1% | ||
| Inspection Speed | 3.5 seconds/piece | ||
| Inspection Range | Inspection Range | ||
| Information Technology Support | SCADA；MES；CIM | ||
| Labor Savings | Saves 1-2 operators while ensuring quality | ||
| Category | Item | Parameter | ||
|---|---|---|---|---|
| Hardware Specifications | Camera Lens | 3 High-Precision Area Scan Cameras | ||
| Display Monitor | 17-inch LED Display | |||
| Appearance/Electrical | Chassis Dimensions and Weight | Size: Customized based on conveyor system dimensions and machine model; | ||
| Power Supply and Wattage | AC 220V/0.5KW | |||
| Air Supply | 0.3-0.8MPa | |||
| Operating Environment | Temperature: -10℃ to 45℃; Humidity: 30-85% RH | |||
| System Software | Core Algorithm | EVOC Self-Developed Deep Learning Algorithm Platform v6.0 | ||
| Special Features | Automatic Transfer | |||
| Data Output | Test Report,Stastic Report,Test Log | |||
| Access Control | Three-Tier Management Permissions； Prevent Software Malfunctions Caused by Unauthorized User Operations | |||
| Communication Methods | RS232；TCP/IP；MODBUS | |||
| Operating System | Windows10 64-bit | |||
