Integrate multiple controllable light sources to respond to flexible production needs.
High precision reading performance and high-quality recognition image quality.
Fast response image sensor for high-precision reading.Fast response image sensor for high-precision reading.
Built in industry-leading AI code reading algorithm.
Equipped with a mechanical lens for one click autofocus.
Built in rich 10 interfaces.
| Model | R-6300 | R-6350 | R-6380 | R-6500 | R-6550 | R-6580 | R-6600 | R-6650 | R-6680 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Product Performance | Sensor | CMOS Image Sensor | ||||||||
| Resolution | 1280*1024 | 1920*1200 | 2448*2048 | |||||||
| Supported Codes | Barcode: Code128, Code39, Code93, EAN13, EAN8, UPC-A, UPC-E, CodeBar, ITF25 | |||||||||
| 2D Code: QR, MicroQR, DataMatrix (ECC200), GS1 DataMatrix, PDF417 | ||||||||||
| Communication Protocol | Ethernet | TCP/IP, FTP, HTTP, ModBus, PROFINET, EtherNet/IP | ||||||||
| Serial Communication | RS-232, Communication Speed: 9600, 19200, 38400, 57600, 115200bps | |||||||||
| Structure | Focusing Method | Auto | ||||||||
| Polarizing Filter | Supported | |||||||||

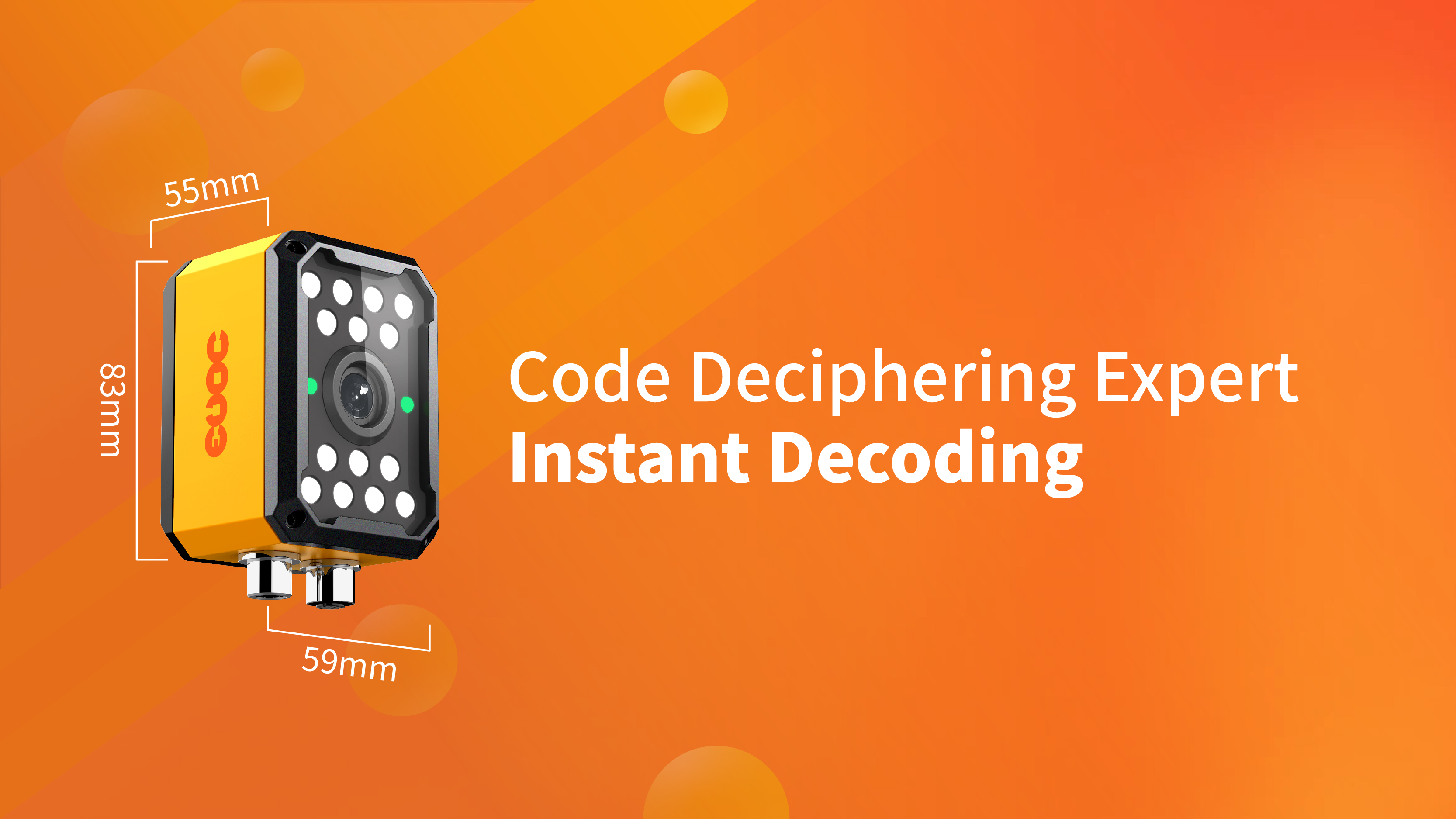

| Dimensions | 83*59*55 (mm) | |||||||||
| Weight | Approx. 378g | |||||||||
| Electrical Specifications | Illumination Source | High-brightness Red LED / High-brightness White LED | ||||||||
| Position Indicator | High-brightness Green LED | |||||||||
| Status Indicator | Power LED, Network LED, Decoding Status LED, Decoding Buzzer | |||||||||
| Buttons | Tuning Button, Trigger Button | |||||||||
| Communication Interface | Ethernet, Serial Port | |||||||||
| Digital IO | Isolated IO Input/Output, 2 Inputs, 2 Outputs | |||||||||
| Power Supply / Power Consumption | ≤ 10W@24VDC (±10%) | |||||||||
| Environmental Durability | Operating Temperature | 0~50℃ | ||||||||
| Storage Temperature | -10~51℃ | |||||||||
| Ambient Humidity | 20%~80%RH (Non-condensing) | |||||||||
| Protection Level | IP65 | |||||||||
| Standard | Certification | CE Certification, FCC Certification, Complies with EU ROHS Standard | ||||||||
